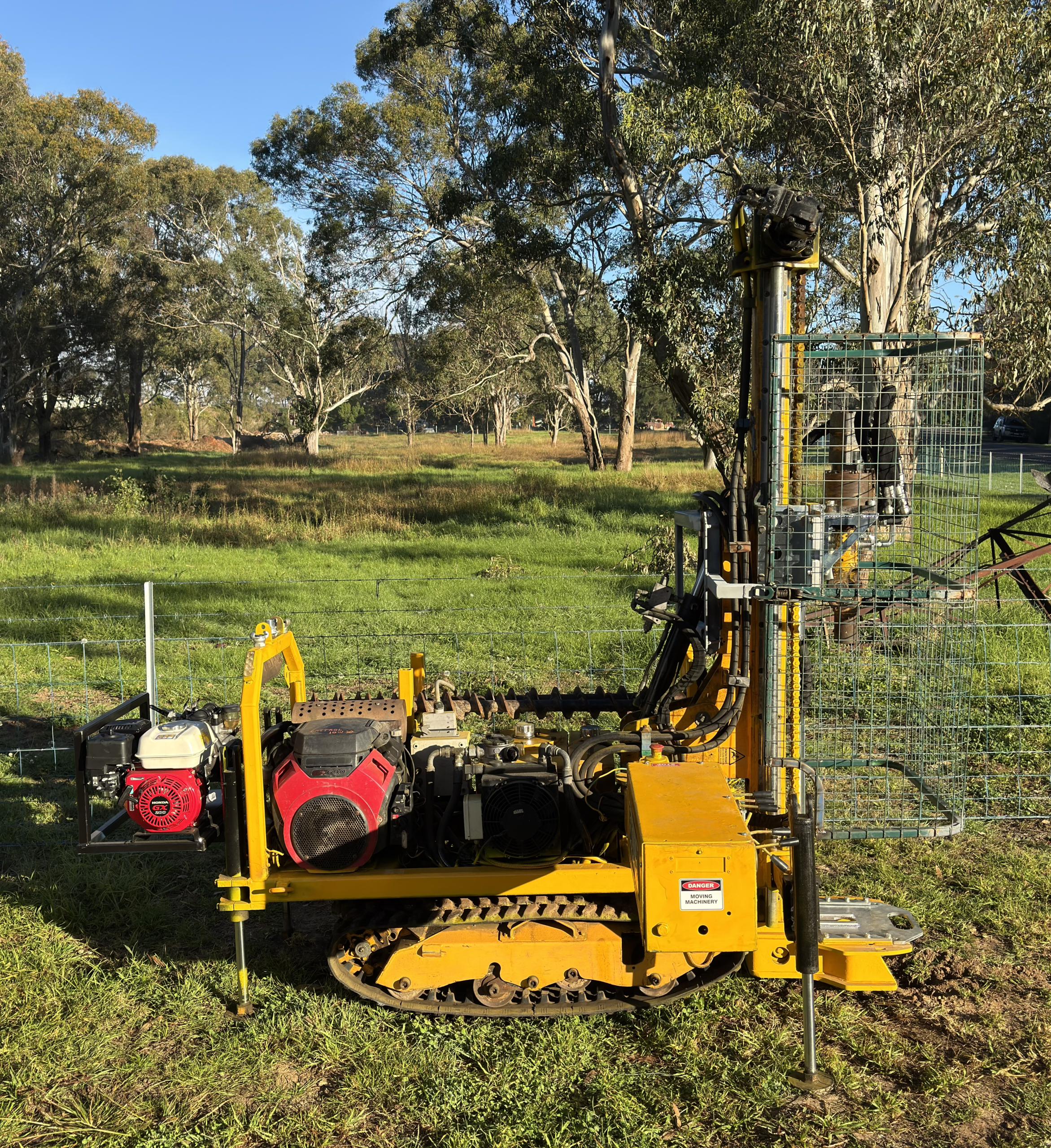

Rig Profile
Built for demanding investigations.
Rig Specifications
2.8 m
Length — Travelling
2.3 m
Length — Drilling
1.5 m
Height — Travelling
2.5 m
Height — Drilling
0.72 m
Width — Travelling
2.3 m
Width — Drilling
—
Width (minimum, panel at 45°) — Travelling
1.3 m
Width (minimum, panel at 45°) — Drilling
35 kPa
Track pressure — Travelling
—
Track pressure — Drilling
Carrier Vehicle
Transport van
Transport van is the carrier used to transport this rig. These transport dimensions are important when planning access, unloading and parking.
Carrier Specifications
6.0 m
Length
2.7 m
Width
2.7 m
Height
4.5 m
Minimum clearance at rear to load/unload
Current Capabilities
One rig. Multiple drilling and sampling methods.
01
Auger drilling
To 5 m depth in soil only
02
Dynamic cone penetrometer (DCP) testing

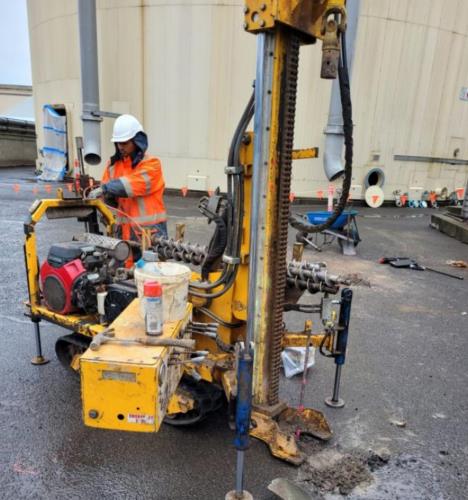

Rig Gallery
1 / 11
Project Planning

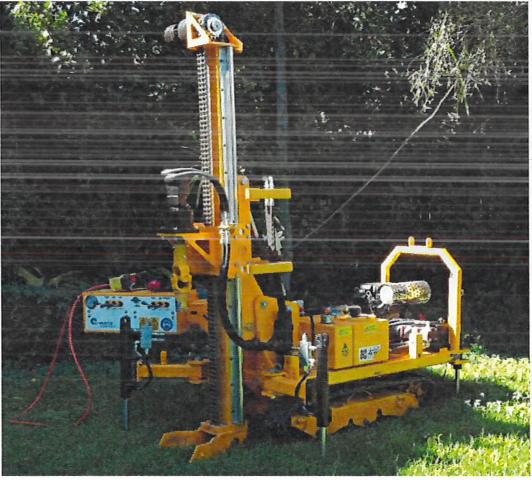

Is Rig 06 – Mini Rig (Bumble Bee) the right rig for your site?
Review access, required drilling method, target depth, parking, water availability and borehole movement before mobilisation.
