Rig Profile
Built for demanding investigations.
Rig Specifications
5.5 m
Length (with mast extension) — Tracking (Mast Down)
4.0 m
Length (with mast extension) — Drilling (Mast Up)
2.4 m
Height (with mast extension) — Tracking (Mast Down)
5.9 m
Height (with mast extension) — Drilling (Mast Up)
4.5 m
Length (without mast extension) — Tracking (Mast Down)
4.0 m
Length (without mast extension) — Drilling (Mast Up)
2.3 m
Height (without mast extension) — Tracking (Mast Down)
4.9 m
Height (without mast extension) — Drilling (Mast Up)
1.4 m
Width — Tracking (Mast Down)
—
Width — Drilling (Mast Up)
3.5 t
Mass — Tracking (Mast Down)
—
Mass — Drilling (Mast Up)

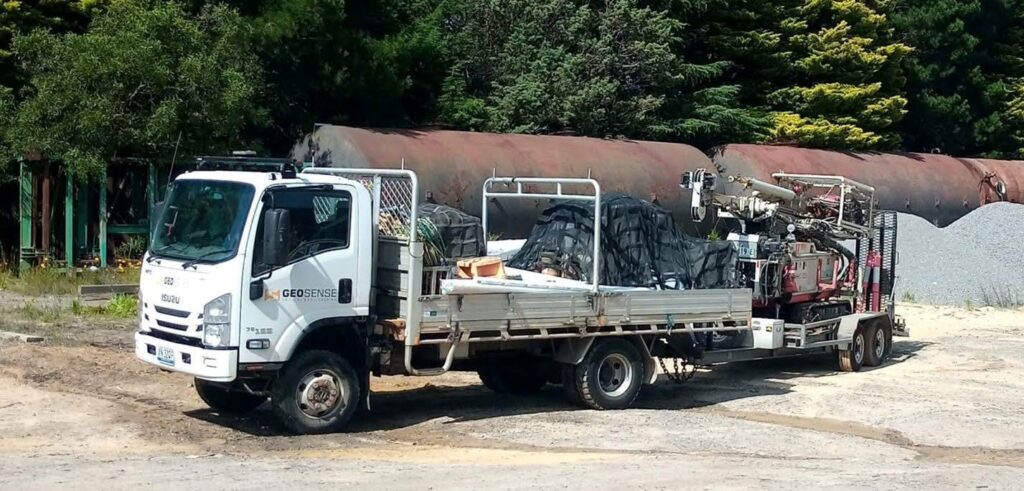

Carrier Vehicle
Isuzu NPS 75-155 4x4 + tandem trailer
Isuzu NPS 75-155 4x4 + tandem trailer is the carrier used to transport this rig. These transport dimensions are important when planning access, unloading and parking.
Carrier Specifications
12 m
Length (truck + trailer)
2.4 m
Width (mirrors folded)
2.8 m
Height (without load)
3.0 m
Height (with rig)
7.5 t
Truck Gross Vehicle Mass (GVM)
4.5 t
Trailer Aggregate Trailer Mass (ATM)
Current Capabilities
One rig. Multiple drilling and sampling methods.
01
Concrete coring
To 500 mm depth
02
Solid flight auger
To 20 m depth in soft soil
03
Rotary mud drilling (washboring)
To 30 m depth
04
Rotary air drilling (with air compressor)
To 30 m depth
05
NMLC coring
To 30 m depth
06
CBR sampling (200 mm dia. auger)
To 3 m depth
07
U50 & U75 tube sampling in soft
To firm clay soils
08
SPT
To 25 m depth
09
All listed depths can be extended if the project requires additional drill rods
Rig Gallery

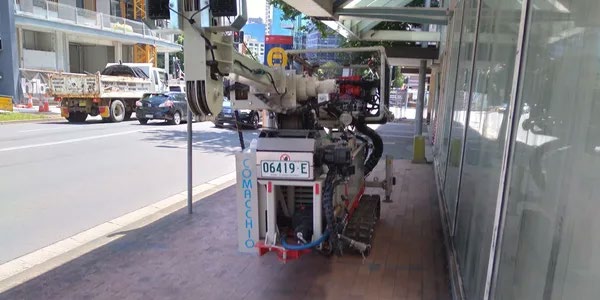

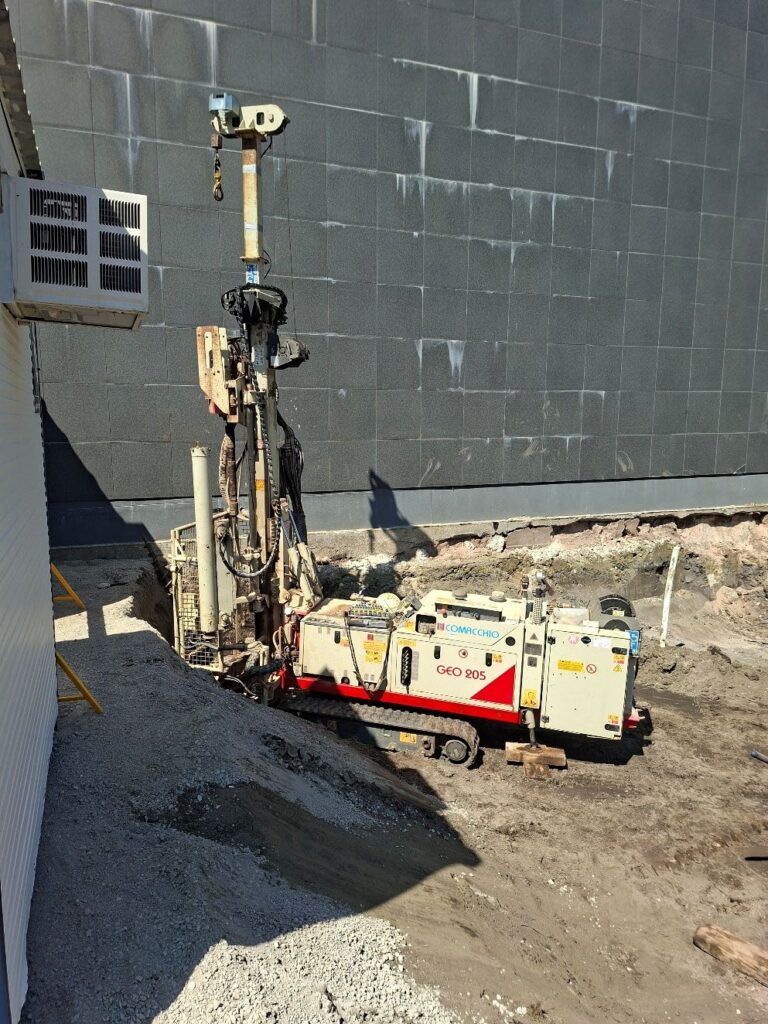

Estimated Productivity
Indicative output per 10–11 hour day.
Productivity varies with parking, access between boreholes, ground conditions, well installation, waste handling, water supply and cleanup requirements.
| Ground / Method | Good access Direct access + good parking Truck and support vehicle parking available; direct access between boreholes; minimal SPTs. | Constrained parking Tricky parking + direct rig access Additional unload/load and parking time; direct access between boreholes; minimal SPTs. | Constrained movement Tricky parking + no direct access Rig may need to be loaded onto the truck between borehole locations; minimal SPTs. |
|---|---|---|---|
| Class 3 sandstone | up to 25-30 m for one borehole | up to 20-25 m for one borehole | up to 15-20 m for one borehole |
| Class 3 shale | up to 18-20 m for one borehole | up to 15-20 m for one borehole | up to 15-20 m for one borehole |
| Highly fractured rock | up to 15-18 m for one borehole | up to 15-16 m for one borehole | up to 15-16 m for one borehole |
| Deep saturated sands | up to 20-25 m for one borehole | up to 15-20 m for one borehole | up to 15-16 m for one borehole |
| Air drilling in bedrock | up to 25-30 m for one borehole | up to 20-25 m for one borehole | up to 20 m where there is space for the compressor |
Additional Time Allowances
On top of the drilling estimates above, allow extra time for: well installation, offsite waste transfer, transporting water where none is available onsite, and extensive borehole cleanup
Project Planning
Is Rig 02 – Comacchio GEO205 (Cico) the right rig for your site?
Review access, required drilling method, target depth, parking, water availability and borehole movement before mobilisation.
