Rig Profile
Built for demanding investigations.
Rig Specifications
1.5 m
Length (frame)
1.2 m
Width (frame)
2.1 m
Mast height
Current Capabilities
One rig. Multiple drilling and sampling methods.
01
Concrete coring
To 200 mm depth
02
Rotary mud drilling (washboring)
To 2 m depth
03
NMLC coring
To 20 m depth

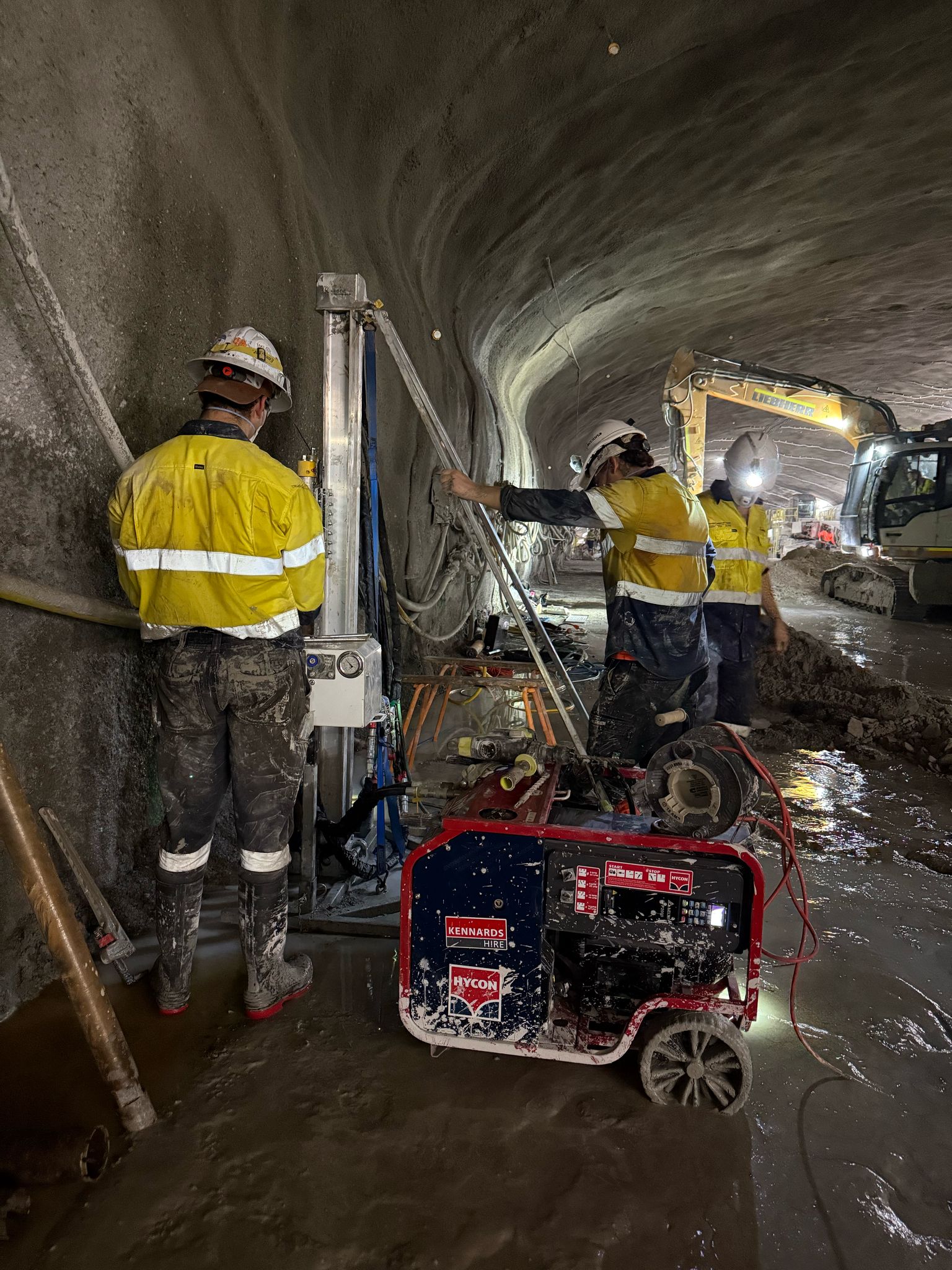

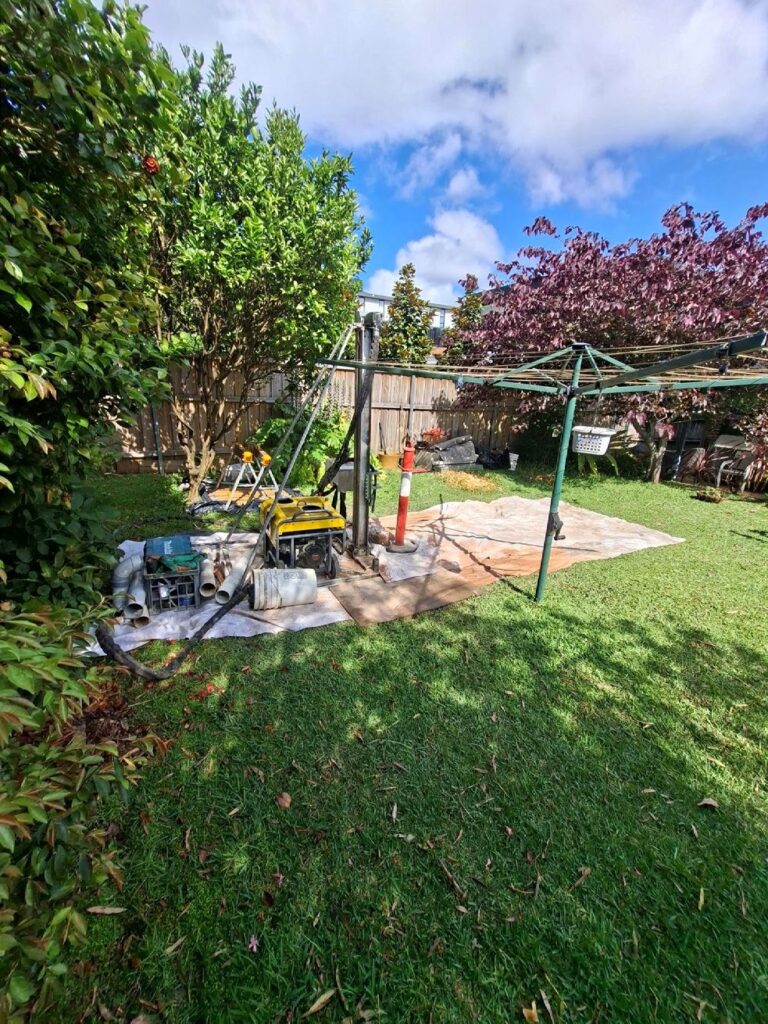

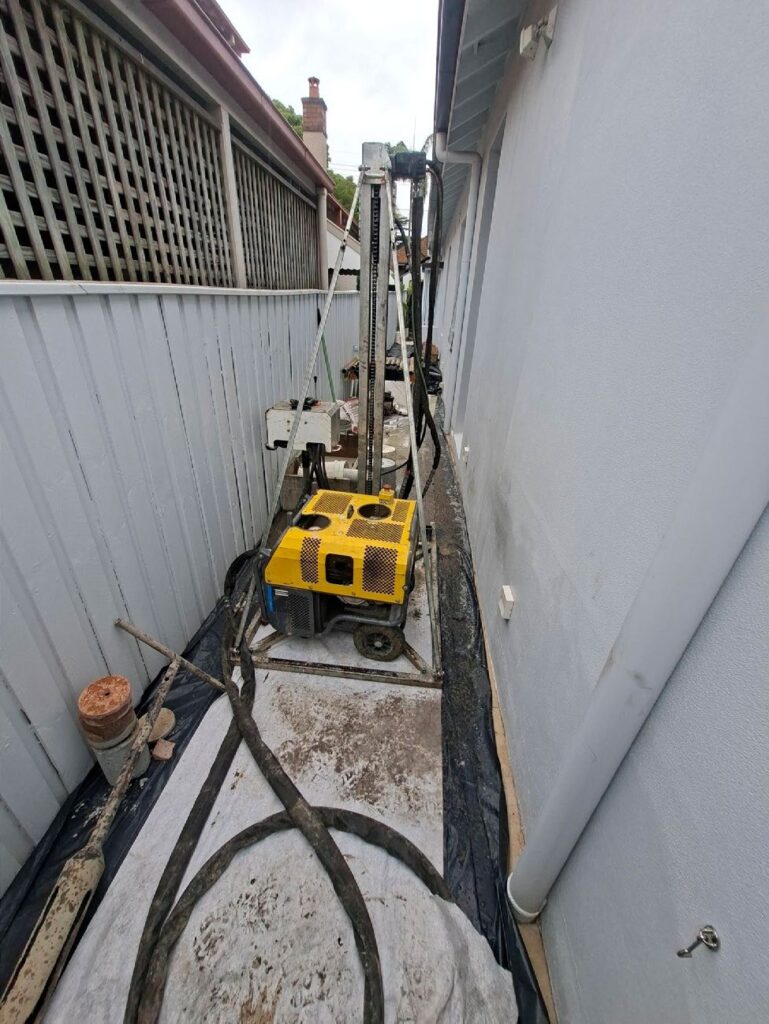

Rig Gallery
Estimated Productivity
Indicative output per 10–11 hour day.
Productivity varies with parking, access between boreholes, ground conditions, well installation, waste handling, water supply and cleanup requirements.
| Ground / Method | Typical day Indicative output per borehole Bedrock must be Class 4 or above at less than 2 m depth; topsoil is hand augered to reach it; water tap required onsite; no SPT. |
|---|---|
| Decent sandstone | up to 8-10 m for one borehole |
| Decent shale | up to 6-8 m for one borehole |
Project Planning
Is Rig 05 – Christie Hand Portable (Xander) the right rig for your site?
Review access, required drilling method, target depth, parking, water availability and borehole movement before mobilisation.
